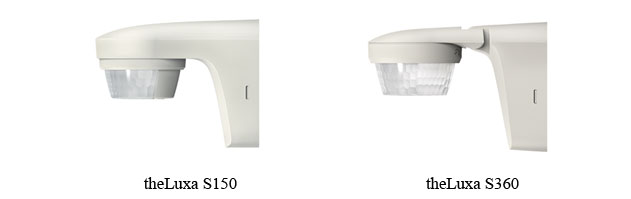

theLuxa Series

theLuxa Series

Technical Specification: Operating Voltage : 230 V, Brightness Range : 5 - 1000 lux, Channel : 1, Switching Capacity : 10 (6) A

theLuxa Series

Technical Specification


Operating Voltage :
Brightness Range :
Channel :
Switching Capacity :
Detection range, height 2.5 m :
Creep Under Protection :
Switching Period Range :
Protection Rating :
Installation Type :


230 V
5 - 1000 lux
1
10 (6) A
5 - 12 m
Ø 3 m
1 sec - 20 min
IP 55
Wall mounted, internal corner and external corner

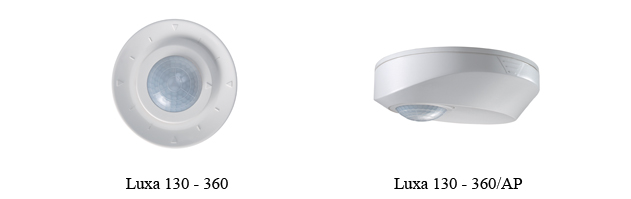

theLuxa Series
theLuxa Series

Technical Specification

Operating Voltage :
Brightness Range :
Channel :
Switching Capacity :
Detection Angle :
Detection range, height 2.5 m :
Protection Rating :
Installation Type :

230 V
10 - 2000 lux
1
10 (3) A
360°
Ø 7 m
IP 40, power unit IP 20
Ceiling mounted

theLuxa Series
