GE VERNOVA | FEEDER AND BACKUP PROTECTION SYSTEM | AGILE P154

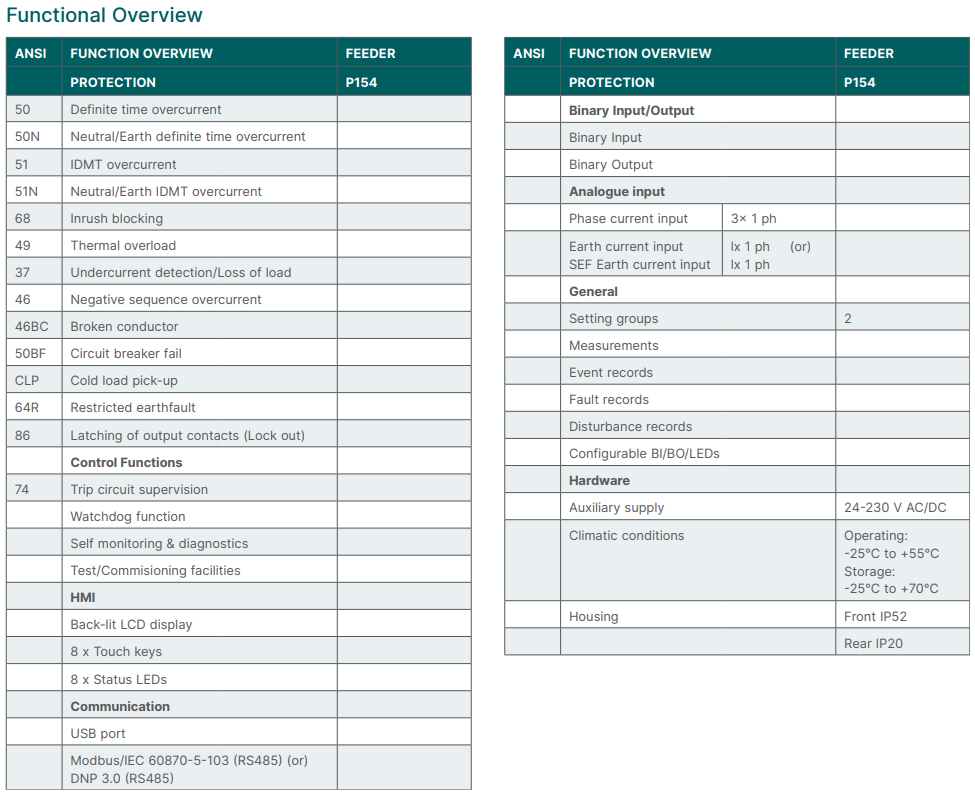

The Agile P154 relay provides non directional overcurrent and earth fault for MV/LV and HV backup feeder protection. The relay features a wide range of measurement, protection and monitoring functions and is easily customizable using programmable BI/BO/LEDs/AND logic. The P154 is economical, designed for deployment in volume in lower voltage systems, as a backup relay in HV systems, or as direct refurbishment of non-communicating overcurrent relays. The principal protection functions are timed and instantaneous phase and earth fault protection, with up to 3 independent stages available. Additional versatility is provided through negative sequence overcurrent, thermal overload, cold load pickup, inrush blocking, broken conductor, breaker fail, restricted earth fault, undercurrent/loss of load, and trip circuit supervision functions. The hardware capability is broadened by a sensitive earth fault CT option, and a universal auxiliary power supply range to permit standardization in procurement and inventories.
Application
The P154 provides a wide range of feeder protection functions and can be applied for the following applications- Cables and overhead lines deployed in MV/LV networks
- Backup in HV systems • Different types of earthing systems
- MV industrial installations, public distribution networks and substations
Key Benefits
- Optimized protection for feeder applications
- Cost effective
- Measurement, protection and monitoring in one box
- Front USB port for local communication
- Flexible SCADA communication options
- Diagnostics/maintenance facilities
- Universal, wide-range auxiliary supply
- Password protection for security
- Extensive self-supervision and internal diagnostics
Communications
- Front USB port for viewing, parameter setting, downloading
- Rear RS 485 port for SCADA communication
- Multiple protocol Modbus
- IEC60870-5-103 (user selectable) or DNP3.0 (ordering option)
