GAE

Applications

• Gateway
  Collects data downstream and sends data upstream through a comprehensive suite of protocols.
• Monitoring & Control
  Supports more than 1000 devices, with up to 500 custom views.
• Disturbance Recorder / eRMT
  Automatically retrieves oscillography, and saves event logs, metering, and control settings for further analysis.
• Industrial Systems
  Provides optimal monitoring, control and automation features to large LV & MV Motor Control Centers and Oil & Gas Plants.
• Power Generation Monitoring and Automation Systems
  Integrates power plant electrical components into a single system. A dedicated Electrical Control System (ECS) provides monitoring, control, and diagnostics in power plants.
• Wide Area Monitoring and Control Systems (WAMCS) and Special Integrated Protection Schemes (SIPS)
  Strengthening power systems both inside and outside of substations, making power systems and critical electricity usage safer, more resilient, and smarter. Across the Utilities. Across the Industry. Across Microgrids.

Key Benefits

• Cost-effective
  Monitoring and control combined with advanced automation for a full range of utilities, industrial, and microgrid applications.
• Scalable
  Solutions for systems ranging in size from a single bay, to large industrial applications with complex automated functions.
• Flexible
  Custom solutions designed and specified by substation automation engineers, with customer-oriented adaptation and quick response times.
• Ease of use
  Simplified processes for connecting devices and creating project HMI screens. Short lead times for full monitoring systems supporting multiple devices.
• Cloud Connectivity
  Embedded communications provide seamless data transmission and storage.

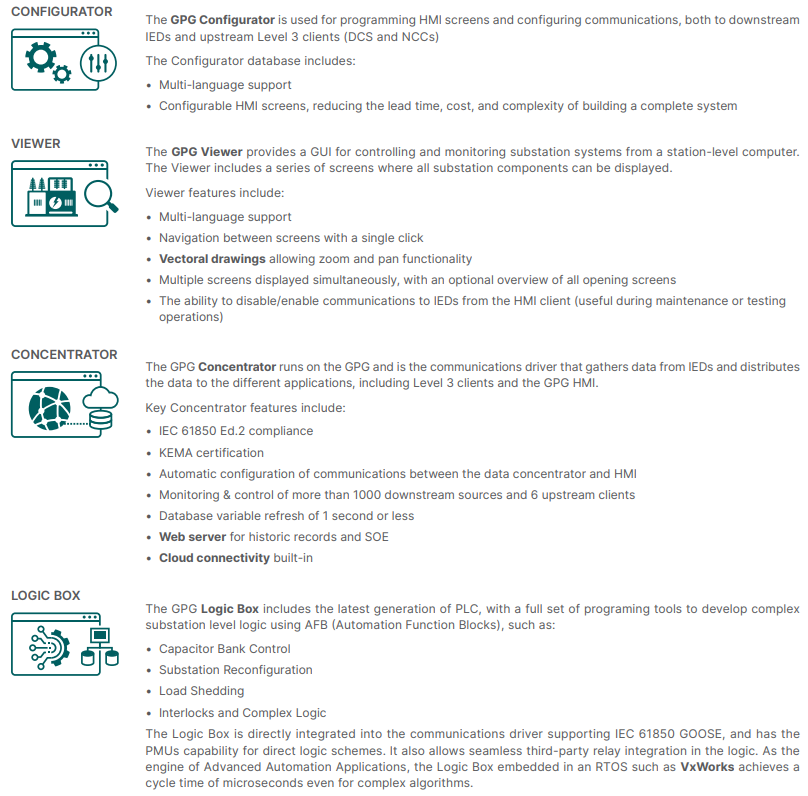

GPG software is a single platform containing the configurator, concentrator, viewer, and logic box. This facilitates the functionality of fully-integrated components, and allows for simpler and faster future development. GPG software can run on any Windows-based operating system, providing the flexibility to adapt to a wide range of applications and site-specific demands without hardware restrictions. With easy-to-use GPG software, minimal training is required to achieve expert configuration of all substation automation solution levels. An HMI Server is not required since the GPG acts as a data concentrator, gateway, and HMI Server. This reduces the overall cost, and minimizes system downtime.

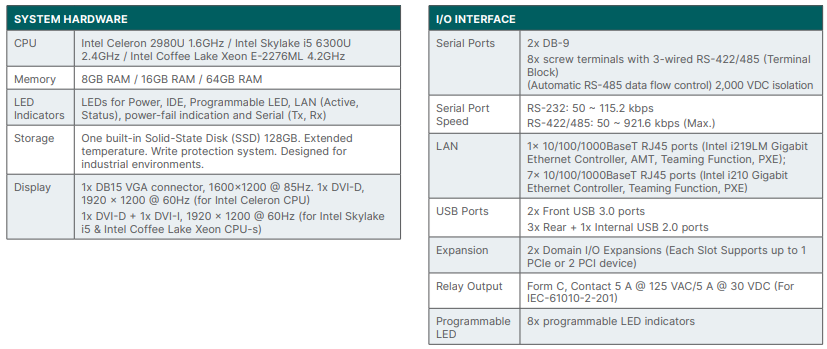

General

• Certification: IEC 61850-3, IEEE 1613, CE, FCC Class A, UL, CCC
• Dimensions (W x D x H): 2U (440 x 280 x 88) mm (17.3" x 11" x 3.4") fits into a standard 19" rack
• Enclosure: SECC & Aluminum
• Mounting: 2U/19" Rack mount
• Power Consumption: 19W/220VAC or VDC (Typical)
• Power Requirements: AC: 100 ~ 240 VAC (47 ~ 63 Hz) DC: 100 ~ 240 VDC DC: 48VDC with isolation protection, AT
• Weight: 6.0 kg (13.2 lbs)
• System Design: Fanless, with no internal cabling
• OS Support: Windows Embedded RTOS VxWorks for critical real time applications, such as fast-load shedding logic.
