Hirschmann Modular Industrial Switches
The MS20 series of Ethernet switches have eight to twenty-four 100 Mbit/s max ports. Fully managed (web, SNMP and CLI) IGMP snooping (multicast filtering), VLAN, port mirroring, port control, port security, link alarms, broadcast limiter, traffic diagnostics, HIPER-Ring redundancy, RSTP, etc. Features include: available in a 2- and 4-slot version (4-slot can be expanded to a 6 slot using MB-2T), requires the use of hot-swappable media modules for any combination of copper/fiber ports, dual power inputs and dual fault relay outputs, USB configuration backup/restore and fast device replacement), standard 0°C to +60°C (-40°C to +70°C and conformal coating available), differentiator between similar switches listed is the firmware level/features. The MS30 series of Ethernet switches have the same functionality and features as the MS20 series, with the exception of an added slot for a Gigabit Media Module (for 2 x 10/100/1000 RJ45/Gigabit SFP combo ports). Features include: uplink ports are 10/100/1000 Mbit/s, all other ports are 10/100 Mbit/s, MS30-08 can have a max of 8 x 10/100 Mbit/s ports and 2 x 10/100 RJ45/Gigabit SFP combo ports can be any combination of copper and/or fiber, and Gigabit RJ45/SFP combo ports compatible with Gigabit SFPs). The new Hirschmann MSP30 Layer 3 switch extends the unique security functions of the MSP30 family to include high-performance routing. This functionality is offered in a variety of hardware packages. Unicast dynamic routing (UR) and multicast dynamic routing (MR) offer customers an attractive cost benefit – "Just pay for what you need.“ With its existing modular IPv6-ready hardware, the MSP30 Layer 3 switch enables complete solutions that meet all network requirements.
Applications
The new PowerMICE, which can either be installed centrally in the switch cabinet or locally in the distribution box, is ideal for applications that require secure and uninterruptible data communication.
For example, since it can be seamlessly integrated into PROFINET and EtherNet/IP environments, it can be used to reliably connect automotive production cells to the control layer.
In the network backbones of petrochemical plants, the new PowerMICE ensures safe control and monitoring of all processes and are equally at home networking wind parks, road tunnels and railway stations. In addition, it can be used in numerous industries to transmit closed circuit television signals (CCTV) enabling video surveillance systems to be connected to the network.

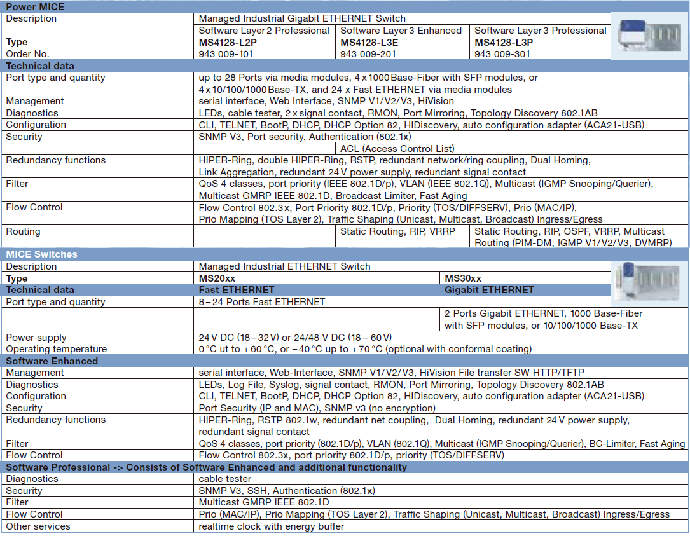

Technical Information
