HIRSCHMANN | POWER RAIL SWITCH | RSP SWITCHES SERIES
The new RSP family of switches with robust hardware and a powerful operating system, are able to withstand extremely harsh environmental conditions. For the first time, the integration of new redundancy protocols allows uninterrupted data communication. These new techniques, PRP (Parallel Redundancy Protocol) and HSR (High-availability Seamless Redundancy), are based on the international IEC 62439 standard and therefore guarantee future security and interoperability. Precision time synchronization in accordance with IEEE 1588v2, synchronizes sensors, drives, and measuring equipment. Gigabit ethernet provides for a fast connection to the backbone, while connections to terminal equipment use 100 BASE-TX – either alone or in combination with 100 BASE-FX.
RSP switches from Hirschmann™ offer eleven ports, three of which can be equipped with SFP transceivers that support Fast (100 BASE-FX) or – optionally – Gigabit-Ethernet (100/1000 BASE-FX). The remaining ports can be used either for 100 BASE-TX or as a combination of four SFP transceivers and four TX ports. These switches are also remarkable for their extensive management and redundancy methods, as well as enhanced security mechanisms. In addition is a version available that supports precise synchronization compliant with IEEE 1588v2, plus PRP (Parallel Redundancy Protocol) and HSR (High-availability Seamless Redundancy).
Benefits at a Glance
- Extensive range of redundancy methods: PRP, HSR, PRP/HSR Red Box, MRP, Fast MRP, RSTP
- Precise synchronization compliant with IEEE 1588v2
- Enhanced security mechanisms: authentication, radius, role based access, port security,SSHv2, HTTPS and SFTP, plus others currently in preparation
- Fast device replacement, comprehensive logging and storage of all configuration data, plus operating software updates via SD card
- High level of vibration resistance
- Broad immunity to electrostatic discharges and magnetic fields
- Temperature range from -40°C to +70°C
- Power supply 24/36/48 V DC or 60/120/250 V DC and 110/230 V AC
- Strong and compact metal housing

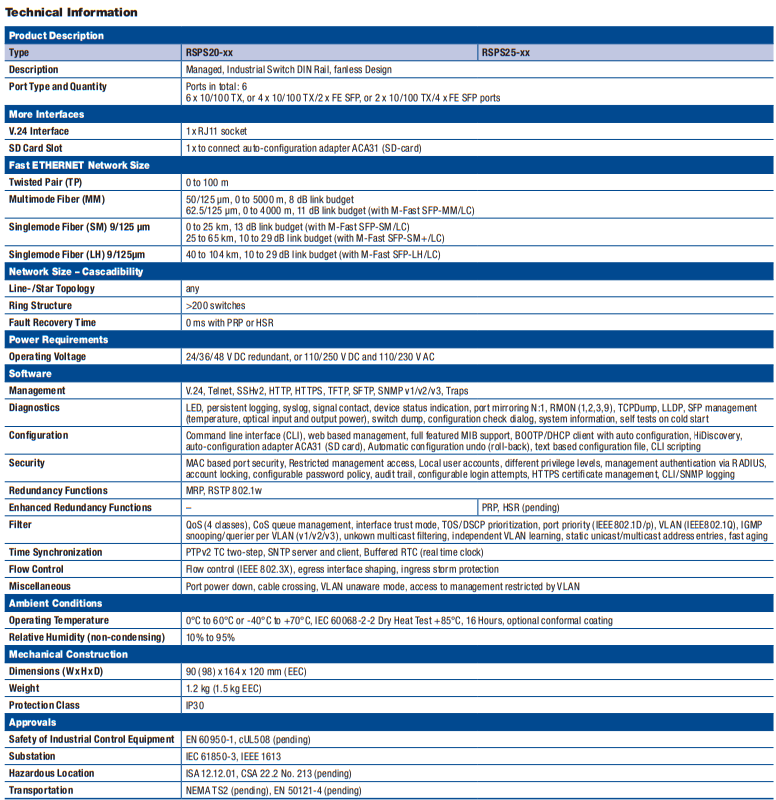

The RSP-Smart features six Fast Ethernet ports designed for twisted-pair cables (100 BASE-TX), which can also be equipped with two/four SFP transceivers (100 BASE-FX). All ports support precise time synchronization compliant with IEEE 1588v2. Security mechanisms such as role-based access protect against unauthorized access. MRP (Media Redundancy Protocol) and RSTP (Rapid Spanning Tree) redundancy methods ensure high network availability. Switch versions also available provide support for the PRP (Parallel Redundancy Protocol) and HSR (High-Availability Seamless Redundancy) redundancy methods, ensuring zero switchover times. Power can be supplied via 24/36/48 V DC or alternatively via 110/250 V DC and 110/230 V AC. Other features of the RSP-Smart include IP30 protection rating, an extended operating temperature range from -40°C to +70°C, compact stainless steel housing and user-friendly configuration and diagnostics.
Benefits at a Glance
- High network availability based on PRP, HSR, MRP, RSTP redundancy methods
- Comprehensive security mechanisms: Role-based access, port security, SSHv2; HTTPS, SFTP
- Precise time synchronization compliant with IEEE 1588v2
- High level of vibration resistance
- Broad immunity to electrostatic discharges and magnetic fields
- Operating temperature range from -40°C to +70°C
- Compact stainless steel housing for DIN rail mounting
- Six Fast Ethernet ports for twisted pair cables (100 BASE-TX) or alternatively there are variants with two or four SFP bays for (100 BASE-FX) MM, SM, LH transceivers
- Power can be supplied via 24/36/48 V DC or 110/250 V DC and 110/230 V AC
- Configuration and diagnosis using HiDiscovery, Industrial HiVision or web interface
- Storage of all configuration data and upgrading of operating software via SD card
- Management via standard web browser and SNMP interface
- Standards and approvals: – Safety: EN 60950-1, cUL508 – Substations: IEC 61850-3, IEEE 1613 – Hazardous environment: ISA 12.12.01, CSA 22.2 No. 213 (hazLoc) – Transportation: NEMA TS2, EN 50121-4
- Perfectly adapted to the Industrial Ethernet switches of the RSP, RSR and MACH1000 families from Hirschmann™

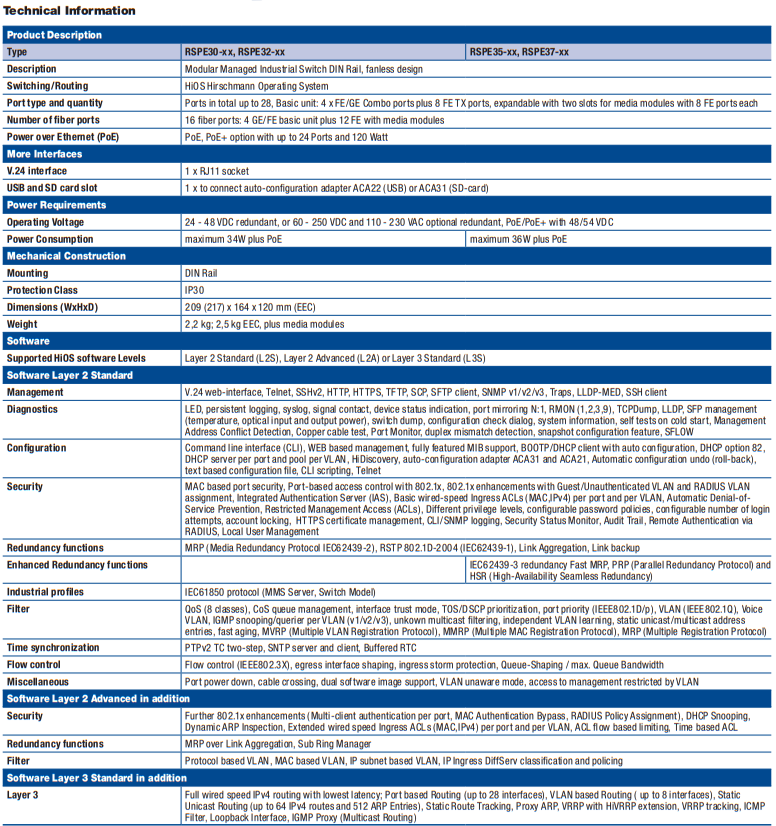

The compact and extremely robust RSPE switches comprise a basic device with eight twisted pair ports and four combination ports that support Fast Ethernet or Gigabit Ethernet. The basic device – optionally available with the HSR (High-Availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol) uninterruptible redundancy protocols, plus precise time synchronization in accordance with IEEE 1588 v2 - can be extended to provide up to 28 ports by adding two media modules. Different combinations of copper or fiber ports (plus PoE/PoE+) can be selected depending on the module type. The RSPE switches also provide comprehensive management, diagnostic and filtering features, as well as numerous redundancy methods, bringing all-around security to your network. The Layer 3 version offers full wired speed IPv4 routing with lowest latency. Further features include an extended operating temperature range from -40°C to +70°C, high vibration resistance and broad immunity to electrostatic discharges.
Benefits at a Glance
- Future-proof design and best-possible investment protection thanks to the maximum flexibility provided by the media modules
- Up to 28 Fast Ethernet or Gigabit Ethernet ports for twisted pair cable and fiber optic cable (via SFP)
- Maximum productivity for systems and machines thanks to completely interruption-free data communications
- Router redundancy, static port and VLAN based routing for increased reliability and security
- Comprehensive security mechanisms bringing all-around network protection
- Reliable networking of applications with rigorous real-time requirements thanks to precise time synchronization in accordance with IEEE 1588 v2
- Cost-effective powering of devices via PoE/PoE+
- Comprehensive management, diagnosis and filter functions
- Broad immunity to electrostatic discharges plus high vibration resistance
- Operating temperature range from -40° C to +70° C (standard model: 0°C to +60°C)
- Compact stainless steel housing for DIN rail mounting
- Special certifications:
- Energy sector: IEC 61850-3, IEEE 1613
- Hazardous areas: ISA-12.12.-01 Class 1 Div. 2 Group A, B, C, D
- Safety applications: EN61131, EN60950, UL61010-1/-2-201
- Marine: GL - Germanischer Lloyd Compass Safe Distance
- Transportation: NEMA TS2, EN 50121-4 - Can be ideally combined with all Ethernet products from Hirschmann™, GarrettCom™ and Belden®
