IBEX Portable Intelligent Battery Tester
The only portable analyzer utilizes patented ripple-removing-algorithm to accurately predict remaining battery-life (All types of batteries including NiCd, VLA and VRLA). Accurately online tests the batteries while they are connected to ups, inverter, charger and loads.
IBEX (Intelligent Battery EXaminer) is a cutting-edge digital battery quality diagnostic tester by IEEE Std. recommendations for all the stationary batteries such as telecommunication's backup power, utility switching power, uninterruptible power supply (UPS), etc. It measures accurate Internal Ohmic Resistance (R) / Conductance (Siemens), Voltage (V), Temperature (oC / oF) for expect battery's remaining service life while the system is online.
- Meets IEEE Std. 1188-1996 and 2005 "Recommended Practice for Maintenance, Testing, and Replacement for Stationary Applications
- Measures Internal-Resistance using Conductance method (KR Patent No.0494489 filed to US, Canada, Japan China etc) for better result & Connector-Resistance
- Measures Ripple-Current (Ultra model only)
- Measures Temperature (Pro & Ultra model only)
- Measures Voltage
- Ultra fast reads and stores data in just 3-4 seconds
- Light and compact palm-size for easy measurements in the field
- Multi-Alarmsforhigh-lowvoltage,high-lowresistance,high-lowtemperature

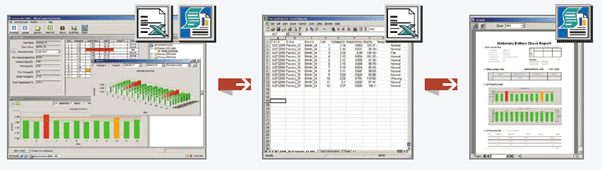

- Diagnostic Software to track history, trending, analyzing, reporting, graphs, upload to pc, print-out or email data, etc.
- Manage up to 30 different battery-banks with total storage data 600 (1000 & PRO model), 4800 (Ultra model)
- LCD display with user friendly icon menu-options
- IR thermal printer
Exmons Pro Software
